Explainer - Hardware connection guide

In this guide, we have listed the cords and cables on the essential pieces of hardware and how to connect them.

In this guide, we have listed the cords and cables on the essential pieces of hardware and how to connect them.

Cords and cables

PC

Printer



Card terminal



Cash drawer



Scanner



Connections

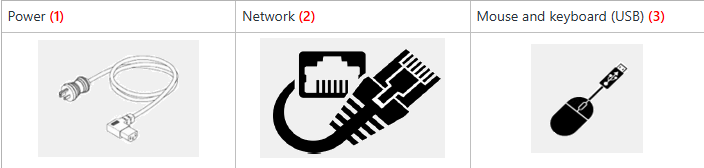

PC

explainer hardware connection guide

(1) – Plug in the computer with the power cord.

(2) – Plug the network/internet cable into the computer and router.

(3) – Connect the mouse, keyboard, and/or scanner via the USB cable in the computer’s USB ports if needed.

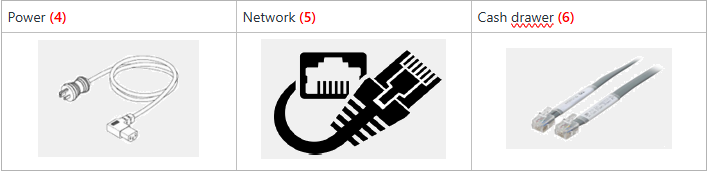

Printer

explainer hardware connection guide

(4) – Plug in the printer with the power cord.
(5) – Plug the network/internet cable into the computer and router.
(6) - If you have a cash drawer, now connect it to the printer.

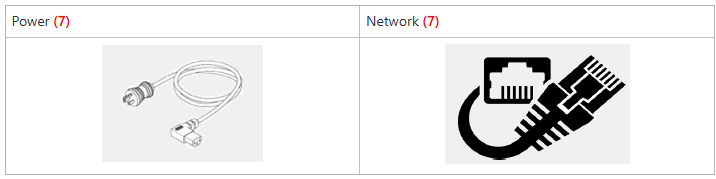

Card terminals

explainer hardware connection guide

(7) – Connect your network/internet cable to the ETH port and the power cord to the power slot on the card terminal dongle.
